Retrospec

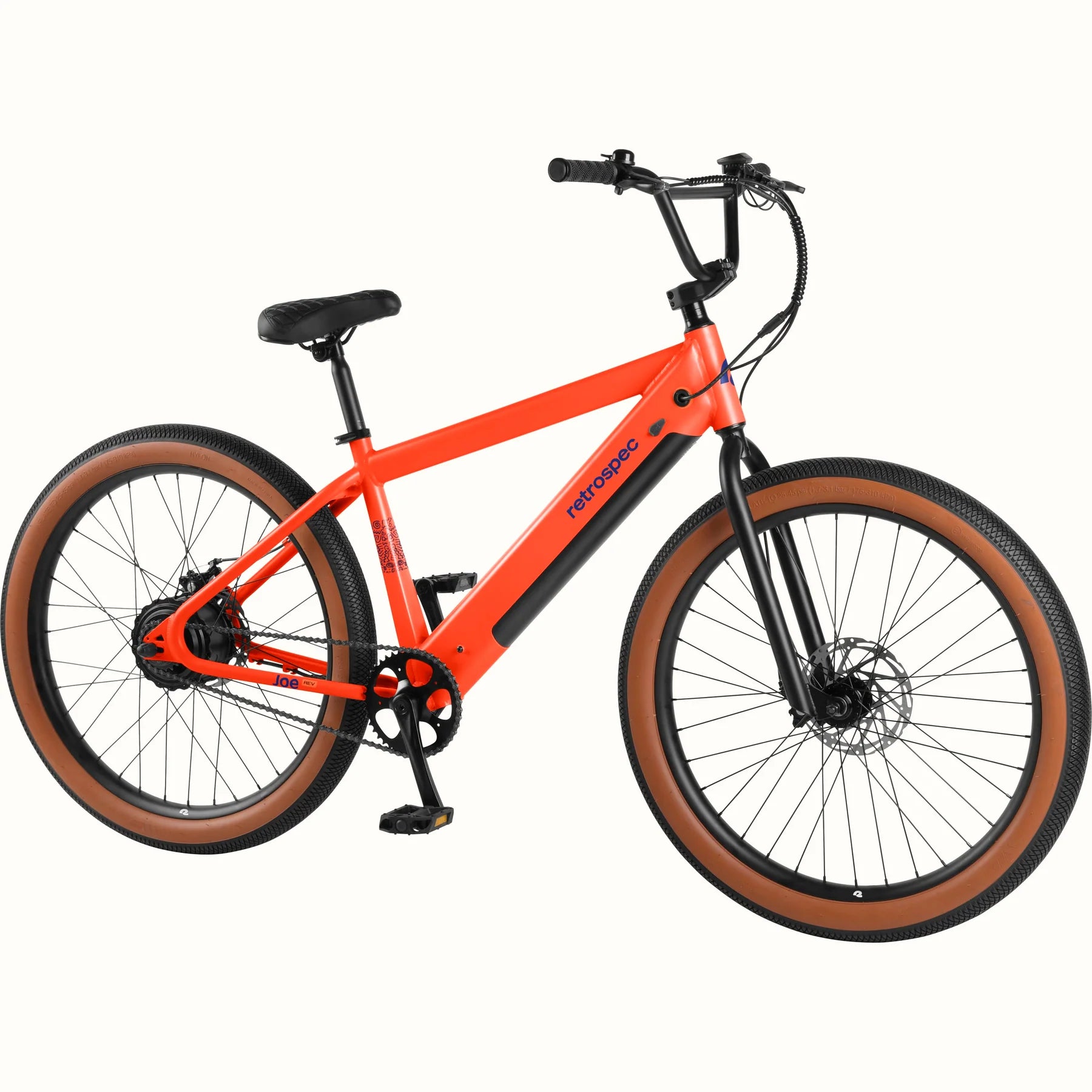

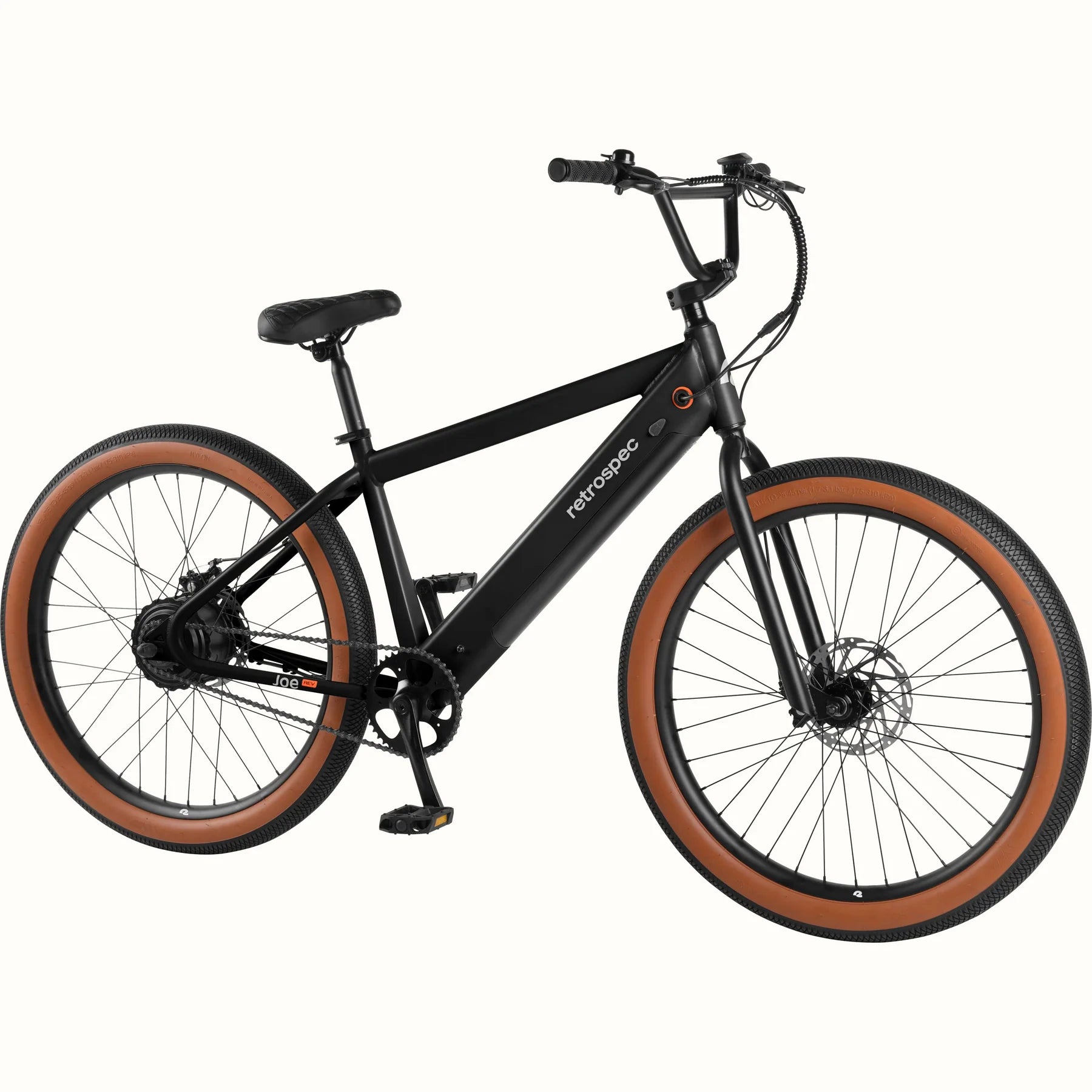

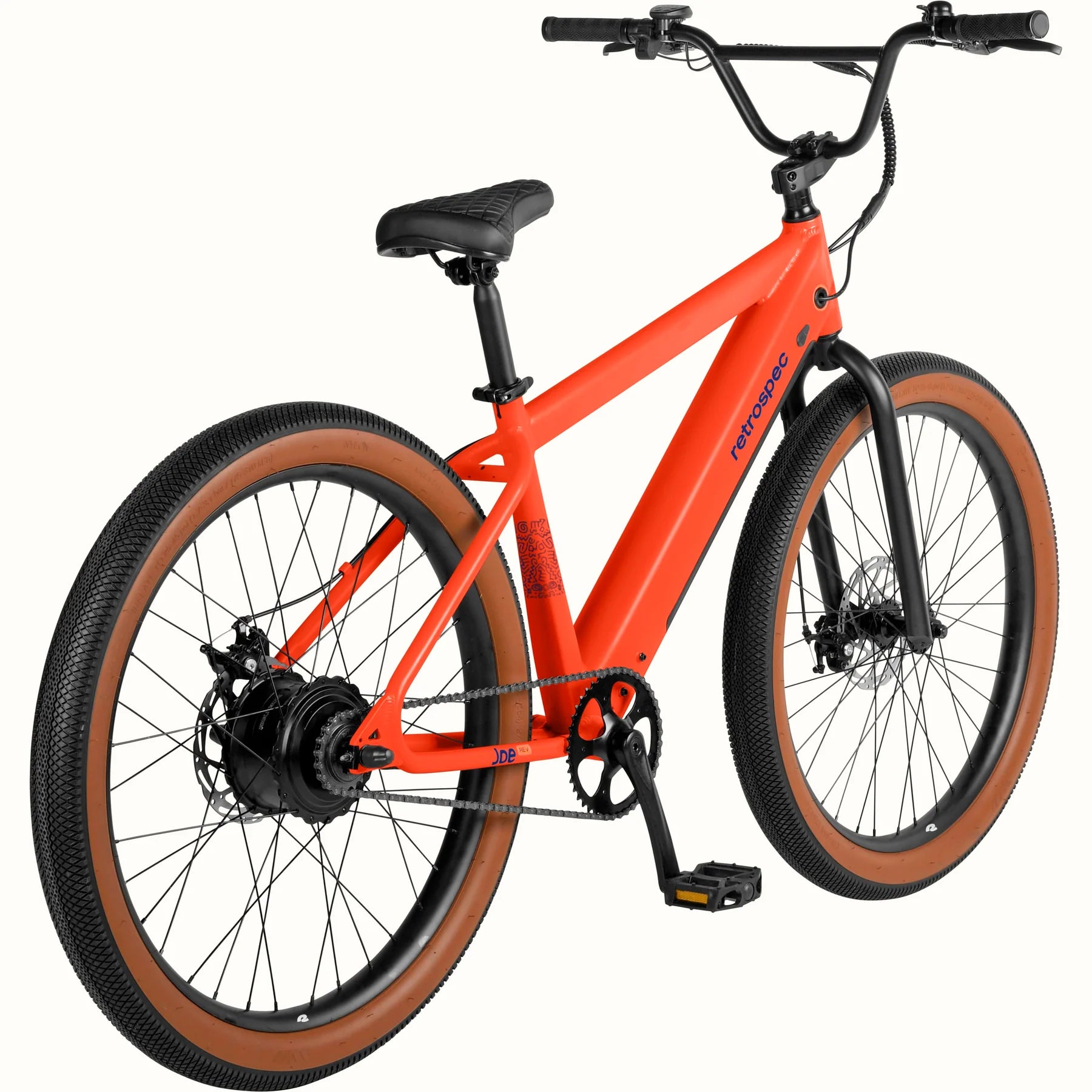

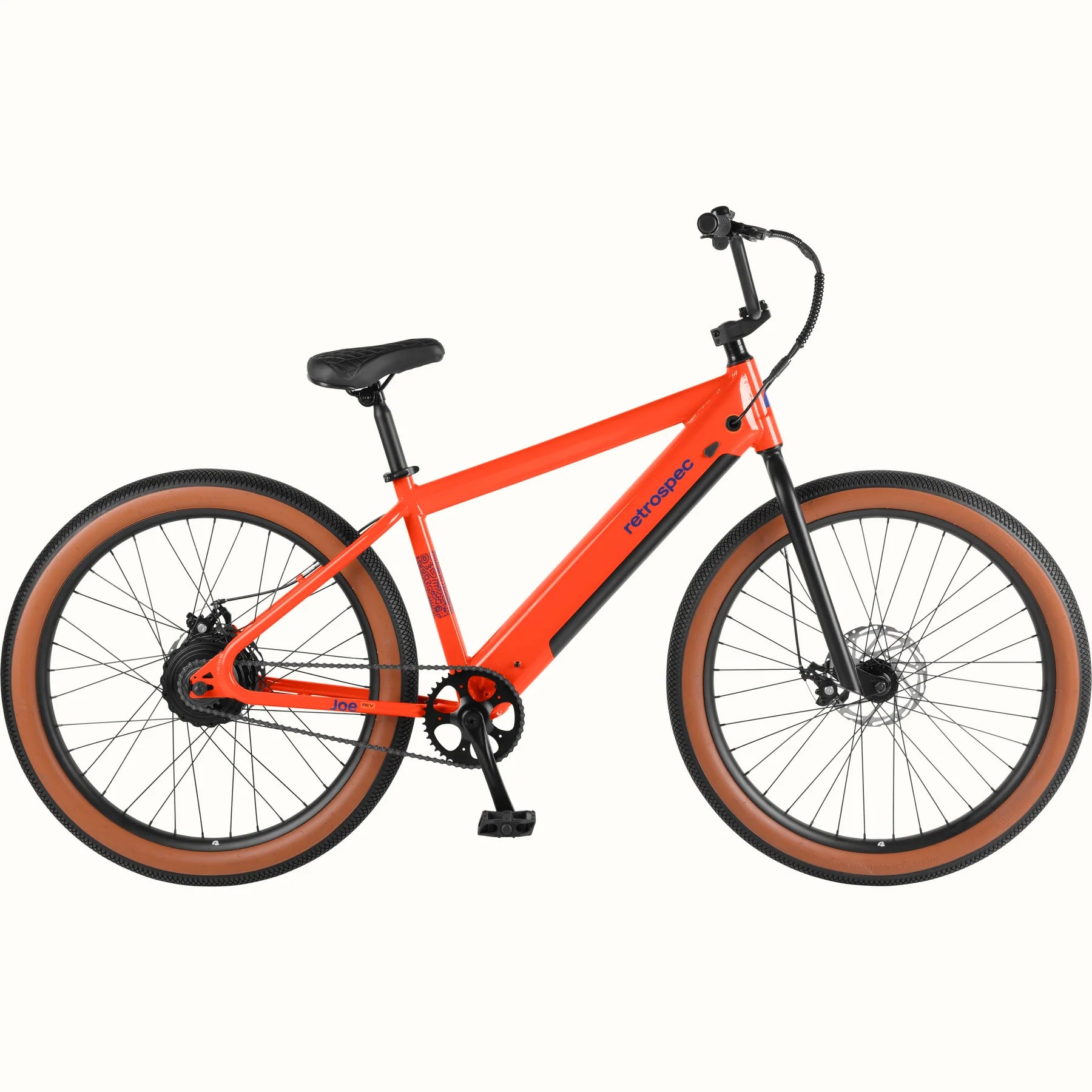

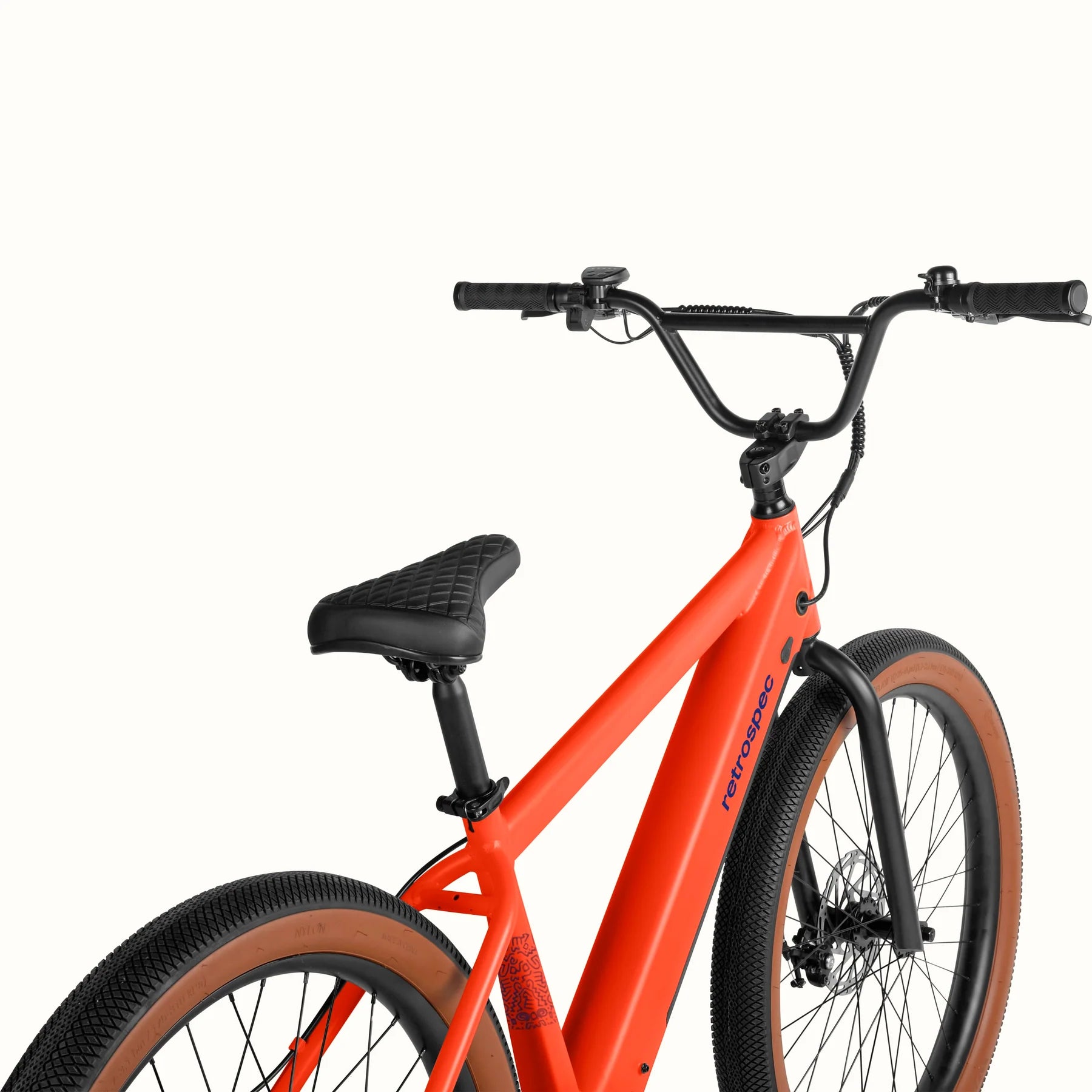

Joe Rev BMX Electric Bike eBike UL 2849 Certified

Regular price $1,199.00 USD
Regular price Sale price $1,199.00 USD
Sale Sold out
Shipping calculated at checkout.
Size
Color

Joe Rev BMX Electric Bike New eBike UL 2849 Certified

Colorado Resident?  Instant $450 Rebate on this eBike available.

Specification
FRAMESET
  • Frame Joe 6061 aluminum with integrated downtube battery
  • Fork Rigid Steel
WHEELSET
  • Hubs Aluminum bolt-on with 17mm axle nuts. 36 hole
  • Spokes 13G with brass nipples
  • Tires 27.5x3" Cruiser Tire
  • Front Hub Aluminum bolt-on with 17mm axle nuts. 36 hole
E-POWER SYSTEM
  • Motor 750W rear hub
  • Battery 500Wh/48VLG 21700 cells; Charge on or off bike
  • Assist Levels 1-5 PAS, Throttle and walk-mode
  • Display Left mounted LED
  • Range Up to 48 Miles
  • Sensor Cadence
DRIVETRAIN

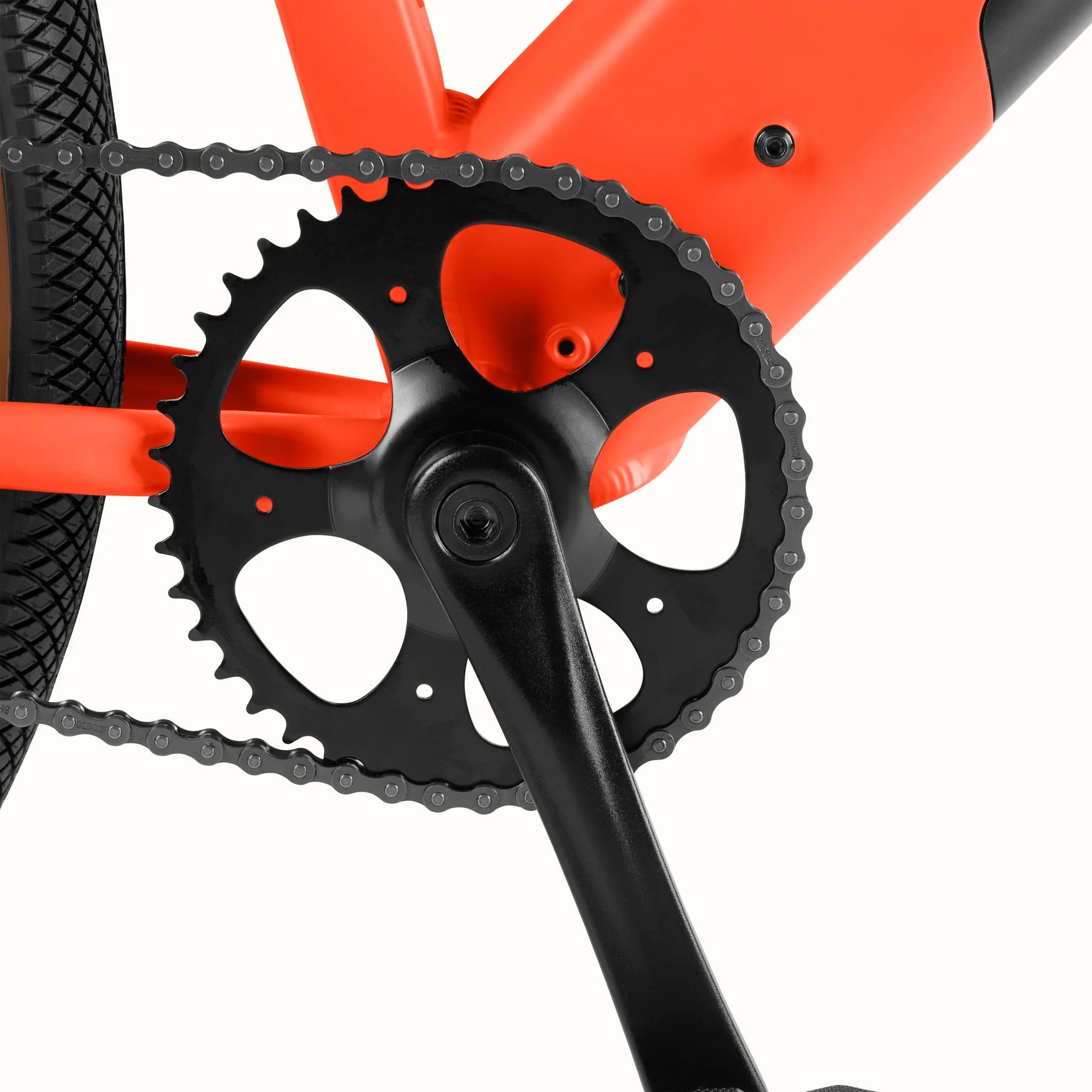

  • Crankset 3-Piece aluminum
  • Chain KMC single speed
  • BB sealed cartridge
  • Freewheel/Cassette Single speed 20T
COMPONENTS
  • Headset1-1/8” semi-integrated threadedless
  • Front Brakes5 Star lever with Tektro mechanical caliper with 180mm E-Bike specific rotors and semi-metalic pads
  • Rear Brakes 5 Star lever with Tektro mechanical caliper with 180mm E-Bike specific rotors and semi-metalic pads
  • HandlebarsSteel BMX
  • GripsLock-on comfort grips
  • Stem BMX Die Cast Alloy 22.2mm clamp
  • Saddle Retrospec Tuck 'n Roll
  • Seatpost Aluminum 30.9mm diameter, 350mm length
  • Seatpost Clamp Aluminum quick release
  • Pedals PP plateform with non-slip tread
EXTRAS

Recommended Weight Limit 350lbs


20mph

Top assisted speed


Up to 48-Mile Range

High-range Rev e-bike

5 Pedal Assist Levels

Propel while pedaling

750W

Planetary geared hub motor

48V/500Wh

LG21700 Li-ion battery

27.5x3" BMX Tires

Extra wide & grippy for a smoother ride

Tektro Mechanical Disc Brakes

Consistent & confident stopping power

Rigid Steel Fork

Maintenance-free vibration absorption

Features

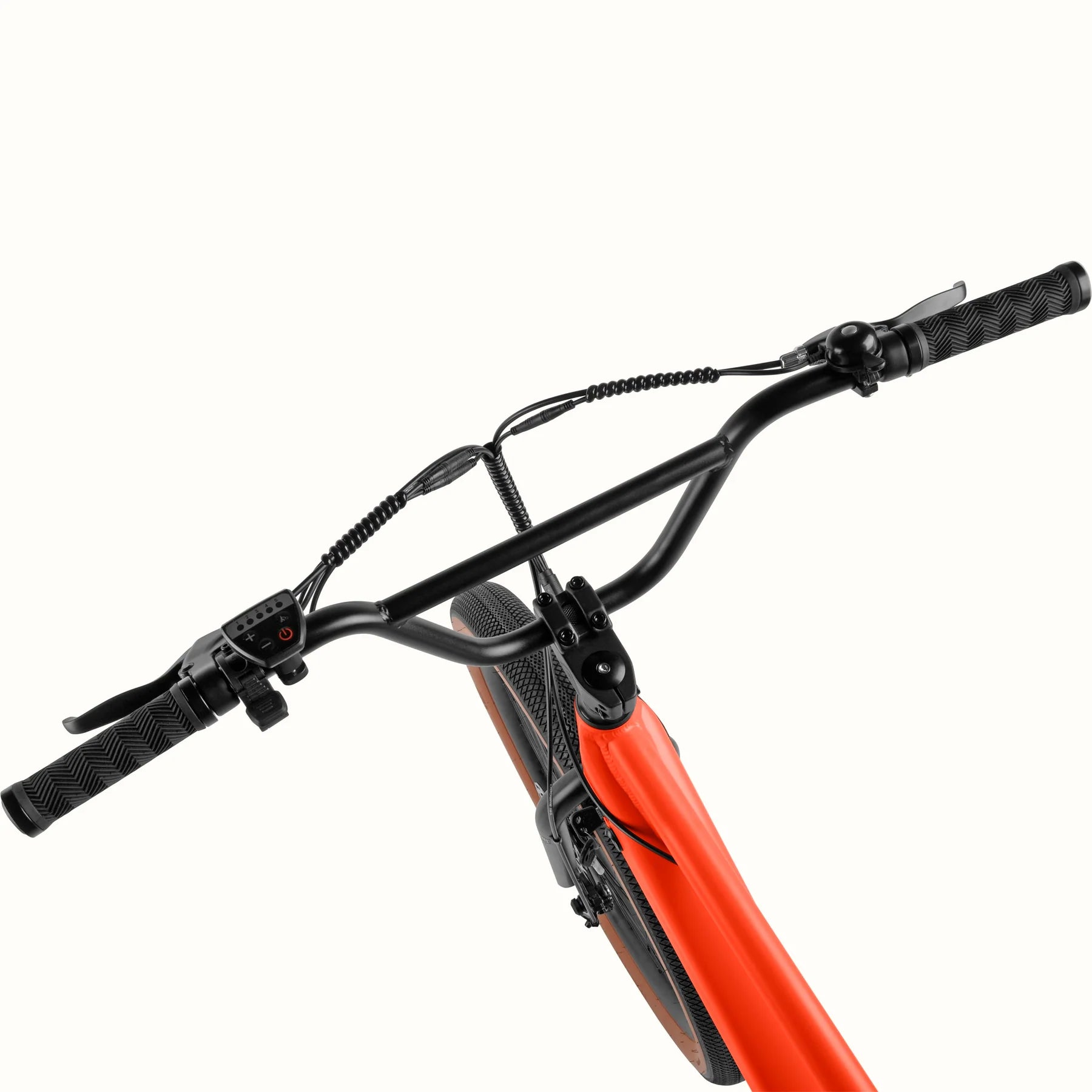

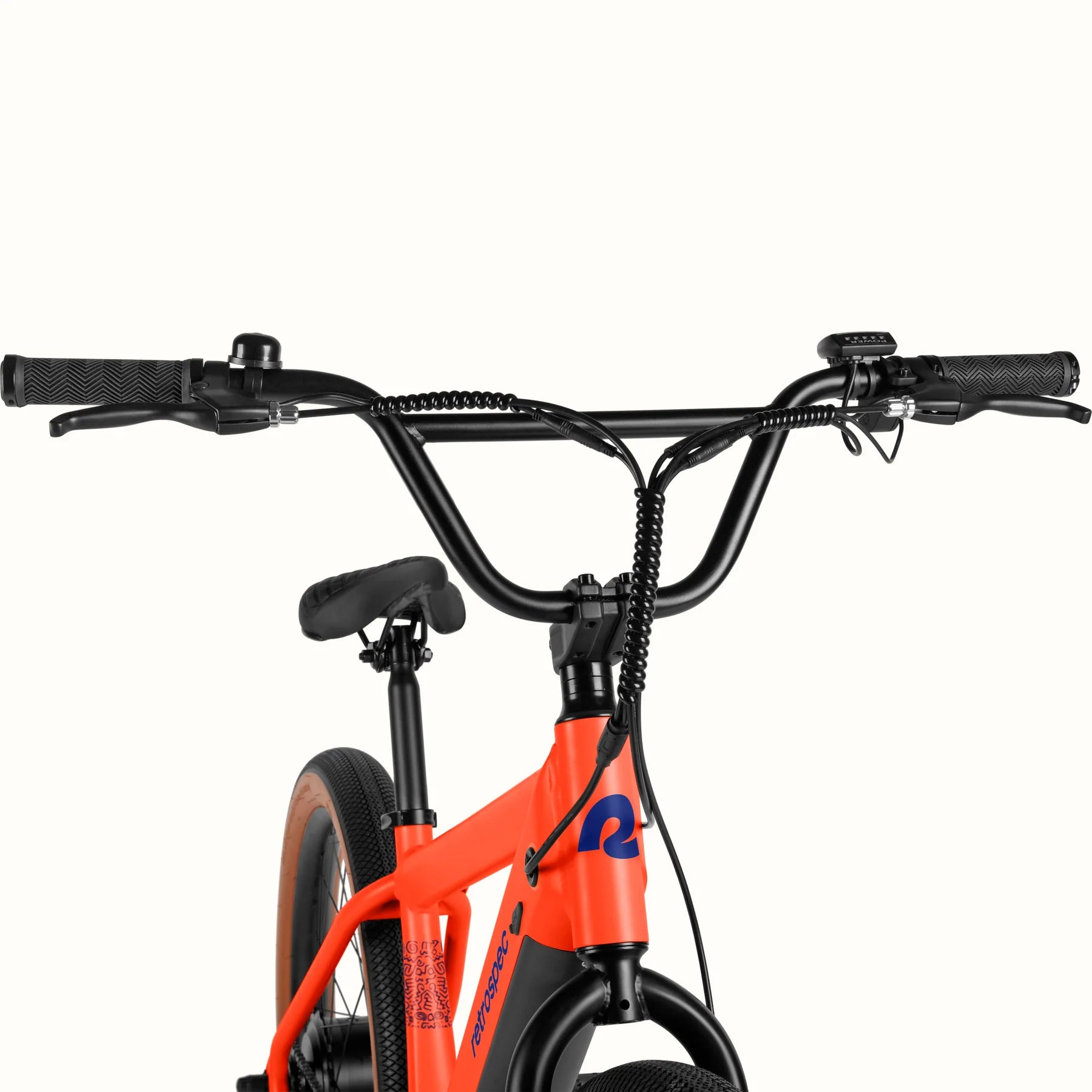

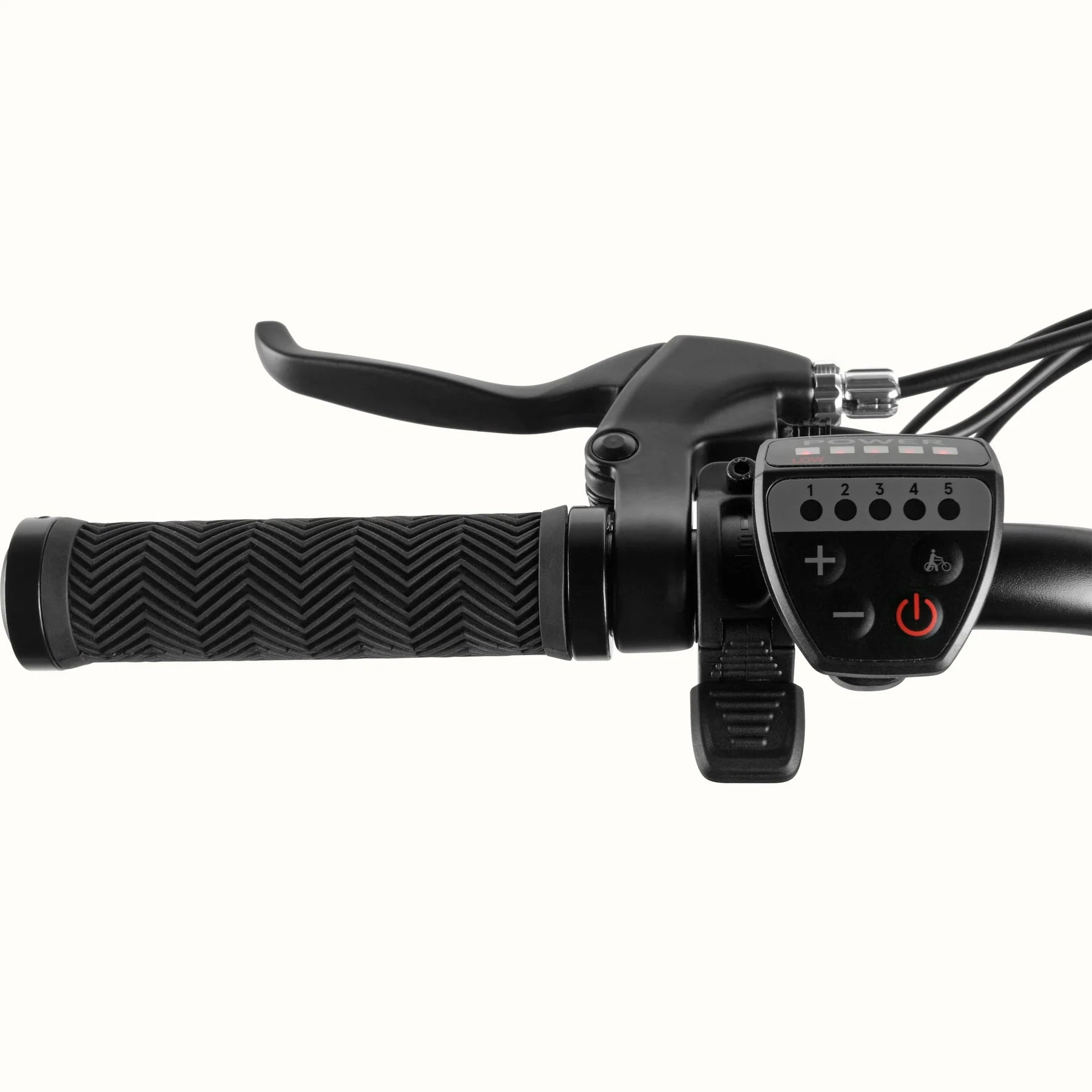

Easy Access to Controls
The handlebar-mounted button pod controls everything, from the throttle, to the lights, to walk mode, pedal assistance, and more – all right at your fingertips.

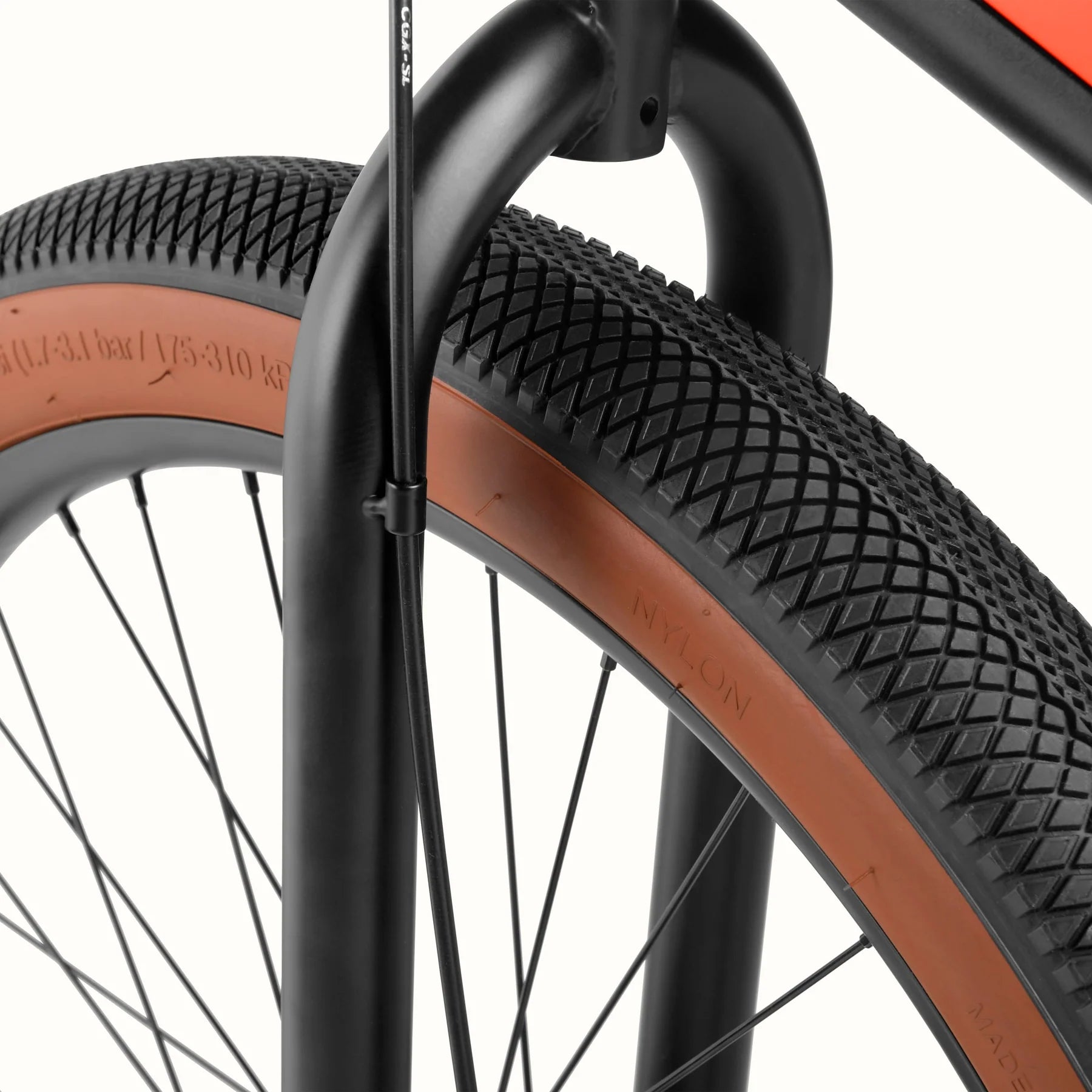

Smooth, Stable Ride
Large-volume 27.5x3” tires offer a smoother ride with better traction and a large contact patch for improved braking.

Choose Your Boost
You’re in total control of your ride. With a convenient push-to-go throttle and 5 levels of Pedal Assist, you can choose how much or how little assistance you want and ride up to 20mph.

On- or Off-Bike Charging
This e-bike’s integrated battery can be charged both on and off the bike. LG 21700 cells enhance the battery capacity so it can store more energy and offer up to 48 miles of range when fully charged.

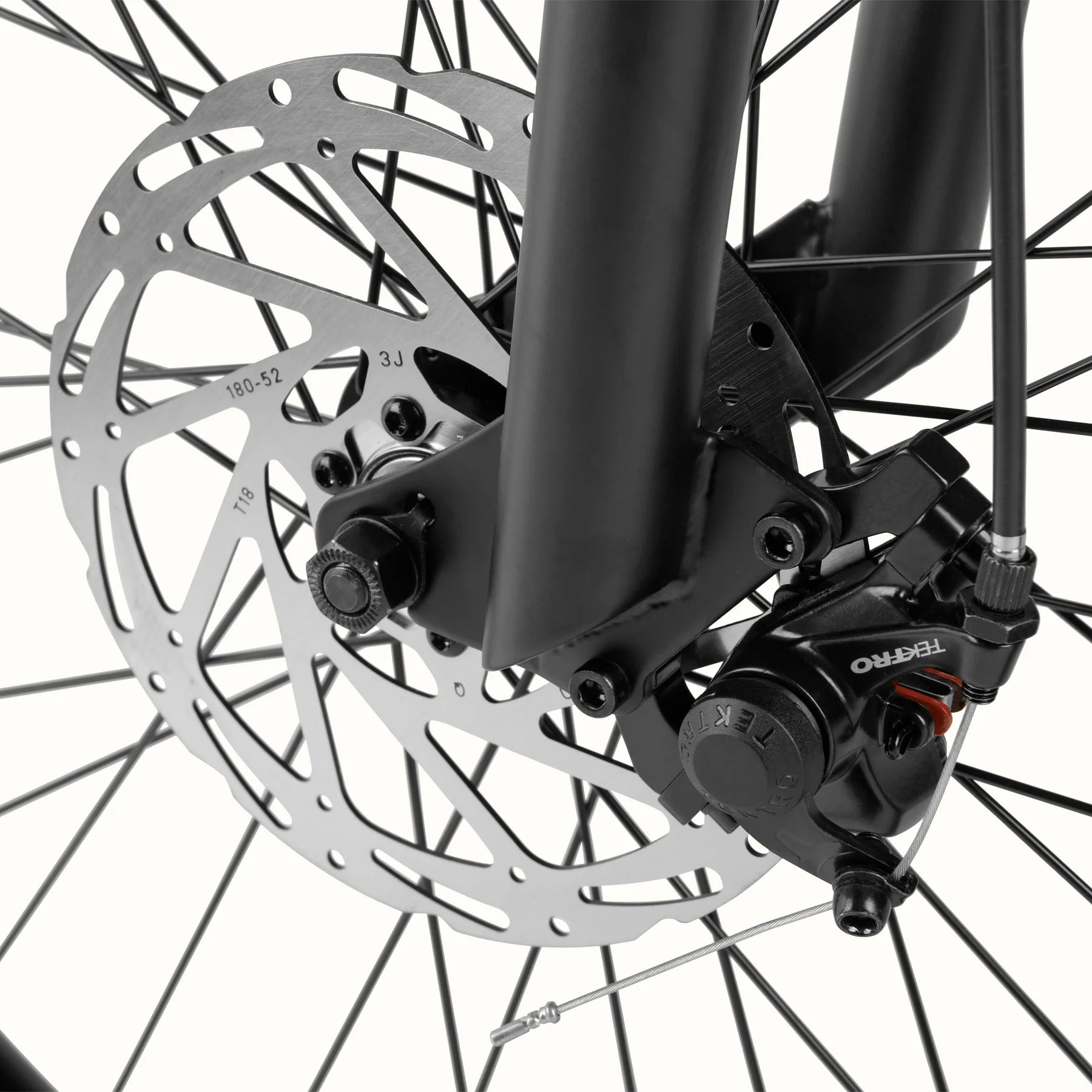

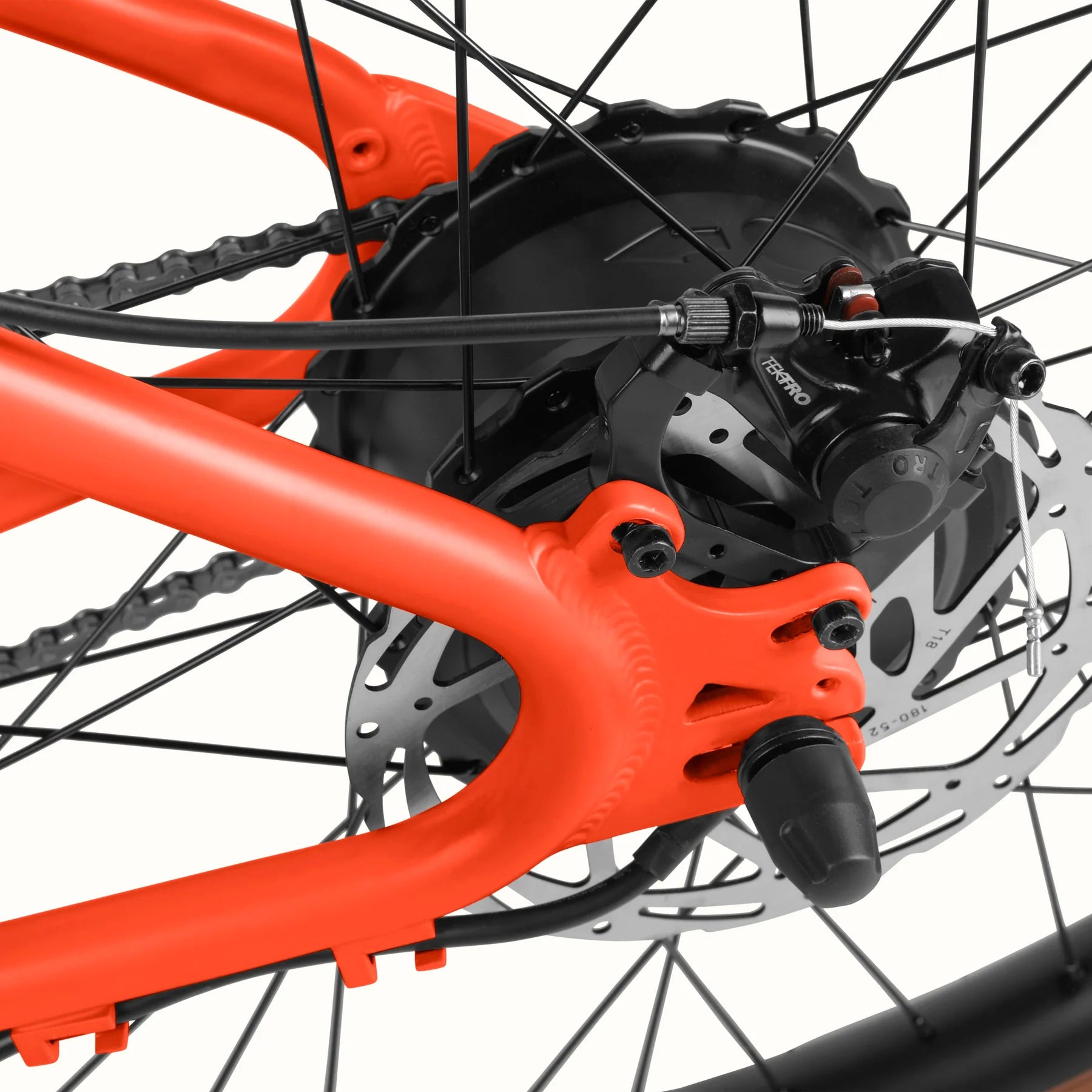

t, Consistent, Confident Braking
Tektro mechanical disc brakes with upgraded semi-metallic pads and 180mm e-bike specific rotors offer reliable stopping power, so you can brake confidently.
Easy-Change Rear Wheel Removal System
Retrospec’s proprietary easy-change system allows you to easily remove and replace the rear wheel whenever you need to change a tube, fix a puncture, or take a look under the metaphorical hood.
All-in-One Tool Included
This e-bike comes with all the tools you need for assembly and maintenance – all conveniently folded up in one portable, multi-functional tool that fits in your pocket for tune-ups on-the-go.


Best for pavement
